電壓: AC85V-264V

工作環境:-20℃--+50℃

工作頻率 :4KHZ—8KHZ

外形尺寸: 2200mm(H)X800mm(W)X400mm(D)

通道尺寸: 2010mm(H)X700mm(W)X400mm(D)

機箱規格: 2260*545*235mm *1ctn

機箱包裝: 420*740*235 mm*1ctn

凈重: 50KG

技術參數

1、面板顯示功能：10寸可觸控大屏。10萬級密碼保護，專人管理，參數保存，防誤操作。

2、面板顯示：分別統計通過人數及報警次數，安檢門前排雙立柱帶有LED燈區位顯示定位違禁物品。

3、 隨身金屬物可排除功能:可排除文胸，紐扣，皮帶，首飾等隨身攜帶的金屬不報警。

4、 準確定位:探測區域分六個區域對人體進行探測，相互重疊的網狀探測區域劃分,雙側發射,雙側接收,能精確定位被探測物,直觀顯示目標物的位置。準確判斷金屬物藏匿位置，根據要求對探測門的各探測防區靈敏度以及總體的高低/大小，進行參數修改設置，以滿足用戶在不同場所檢測不同大小的物品。

5、聲光報警功能：多區位同時探測同時報警：可根據金屬分布的不同位置同時給出報警。

6、整體靈敏度300級可調：級別越多，靈敏度調整細致，可有效排除隨身攜帶金屬物。

7、行人通過偵測錄像系統（選配）：內置攝像頭，對通過人員進行錄像。

8、開機自檢功能,啟動探測門時，系統會自動對主控制系統、左右探測門板的探測系統、紅外裝置系統、各防區探頭、各外接設備和端口進行自動檢測診斷，無需初期或定期校準，即插即用，方便操作。

9、密碼保護功能：采用雙重密碼保護，只允許授權人員操作，可根據需要對密碼進行修改，并提供密碼丟失恢復設置，安全性更高。

10、采用數字、模擬和左右平衡技術，防止誤報警和漏報，大大提高抗干擾能力。

11、符合EMC電磁輻射標準，采用弱磁場技術，對心臟起搏器佩戴者、孕婦、軟盤、膠卷、錄像帶等無害

12、防水性：：整機電源置于主機頂端，防水性更高。配置防水腳套：不但可以固定門體，而且起到防水作用。

13、采用PVC合成材料特種工藝制造，防水、防火、抗震性更高

14、安裝方便：系統是一體化設計，僅需10分鐘即可完成安裝或拆卸。

應用領域：

機場、海關、地鐵、展覽中心，電子工廠，銀行，監獄,政府辦公,及酒店娛樂場所

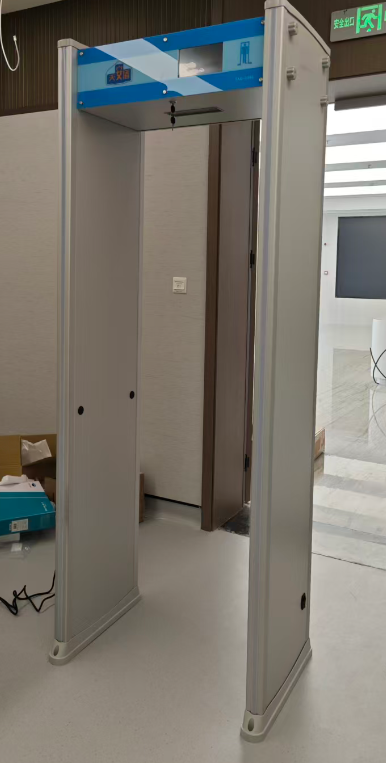

6 ZONES WALK THROUGH METAL DETECTOR

Model No.：Tad2008

Zones：33

Power voltage: AC110-240V

Working environment:-20℃--+50℃

Working frequency :7.27KHZ—8.75KHZ

Overall external dimensions: 2200mm(H)X800mm(W)X400mm(D)

Internal tunnel dimension: 2000mm(H)X700mm(W)X400mm(D)

Door panel: 2260*545*235mm *1ctn

Over control panel: 420*740*235 mm mm*1ctn

N.W.：50KG / G.W.：65KG

Technical Parameters

1、Panel display function：Chinese and English interface, infrared remote control operation, LED display, respectively count the number of people passing and alarm times, security door front double column with LED light location display to locate prohibited items.

2、Portable metal can exclude function: can exclude bra, button, belt, jewelry and other portable metal does not alarm.

3、Accurate positioning: the detection area is divided into 6 areas to detect the human body, and the overlapping network detection area is divided, bilateral transmission and bilateral reception, which can accurately locate the detected object and intuitively display the position of the target object. Accurately determine the hiding location of metal objects, according to the requirements of the detection door of each detection area sensitivity and overall level/size, parameter modification Settings, to meet the user in different places to detect different sizes of items.

4、Sound and light alarm function: multi-location simultaneous detection and alarm: according to the metal distribution of different locations at the same time to give alarm.

5、The overall sensitivity is adjustable from 0 to 255 levels: the more levels, the sensitivity is adjusted carefully, which can effectively exclude carrying metal objects.

6、Pedestrian detection video system (optional): built-in camera, video of passing people

7、When starting the detection door, the system will automatically detect and diagnose the main control system, the detection system of the left and right detection door panels, the infrared device system, the probes of each defense area, the external devices and ports, without initial or regular calibration, plug and play, easy to operate

8、Password protection: Dual password protection allows only authorized personnel to operate. Passwords can be changed as required and password loss recovery Settings are provided for higher security

9、Quickly set up the operation place, including: electronics factory, hardware factory, cable factory, court system, airport, sports venues, entertainment venues and other places of the fast set parameters, can be convenient and quick to set the parameters of the environment needs, and then make the corresponding adjustment itself, effectively reduce the difficulty of adjusting the security door.

10、Digital, analog and left-right balance technology are adopted to prevent false alarms and missed reports and greatly improve anti-interference ability

11、In line with EMC electromagnetic radiation standards, using weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film, video tapes,etc

12、Water resistance: The power supply of the whole machine is placed on the top of the host, and the water resistance is higher. Configuration waterproof foot cover: not only can fix the door body, but also play a waterproof role

13、It is made by special process of PVC synthetic material, with higher waterproof, fireproof and shock resistance

14、Easy installation: The system is an integrated design, only 10 minutes to complete installation or disassembly.

15、Application fields：Airports, customs, subways, exhibition centers, electronic factories, banks, prisons, government offices, hotels, etc
