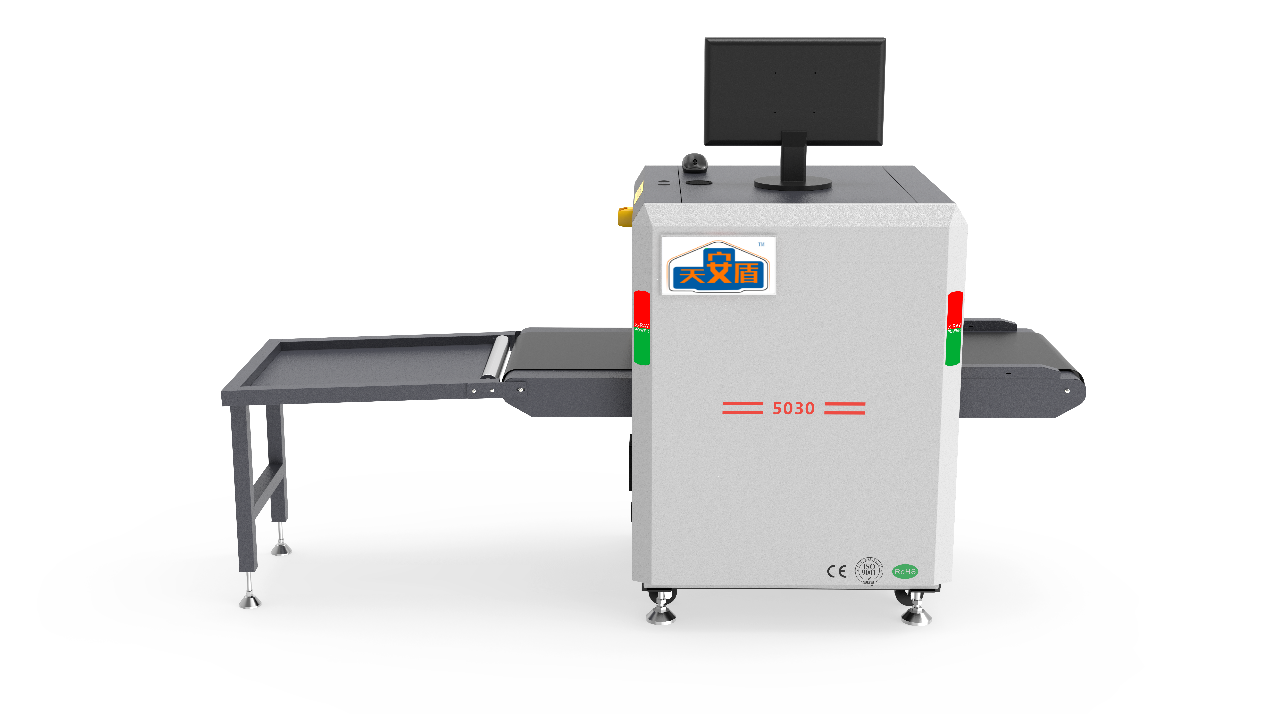

X射線安全檢查設備TAD5030

產品特點

高端采集系統設計：

采用進口探測系統方案、進口探測器，性能更穩定，更安全可靠；

全數字化設計：

數字光源，無刷電機，數字控制器，數字采集器，智能圖像處理系統，

A

I

智能識別（可選）；

安全可靠性設計：

’

弓

’

字形光路設計降低輻射，全鉛防護近似

0

輻射泄漏；樹形電路設計，獨立靜電防護措施，防止串擾，延長器件壽命；

卡包防護

設計，光源聯動設計，皮帶跑偏設計，設備診斷設計，

3

60

度警示燈設計，遠程管理（可選）等。

防水功能：

通道內特殊處理，旅客少量液體散落無影響；

節能環保：

機器可自動感應物體，有行李放上機器才啟動運行，無物體時靜止；

環保設計：

鉛簾外加

保護膜，機殼內

露鉛部分

噴漆不裸露，防止客人接觸到鉛，避免鉛污染；

AI

智能識別（可選）：

基于原子序的疑似違禁品檢測，基于圖形的

A

I

智能識別；

產品說明

高清采集系統：

產品采用

1

6~24

bit

位寬數字

采集卡，進口探測器，信噪比高達

2

0000

：

1

，良好抗干擾能力，故障率低。

數字

/

模擬光源：

進口光源工藝，鎢鉬陽極，油冷，

1

.0mm

光斑，上升時延小于

2

0ms

。

系統自檢測功能：

系統啟動或正常工作時，通過界面虛擬指示燈提示系統工作狀態，若設備發生故障時，能夠及時準確提示。內部運行過程可日志保存（可選）。

保存多種格式圖片：

用戶可以根據需要選擇保存圖片的格式，提供

BMP

、

JPG

、

PNG

、

JPEG

等多種圖片格式。

圖像

文件

管理系統：

為實現有限的存儲容量能夠存儲更多的數據和方便用戶查看保存的圖片數據而設計，該系統按日期保存圖片，具有圖片壓縮功能，自儲容量檢測功

能，容量不足是，會自動刪除最早保存的

舊圖片

數據，確保不影響存儲新圖片，同時，系統提供在線圖片瀏覽功能，能夠快捷瀏覽保存的任意圖片。支持圖像按用戶名，日期查詢，刪除，導出等功能。

多用戶管理：

3

級用戶管理

。

數據記錄：

自動

保存

用戶

操作過程，支持過程查詢，統計。

T

IP

功能：

提供

TIP

插入和

T

IP

訓練

。

支持違禁品檢測（可選）：

支持高密度物質穿不透告警，支持

基于原子序的

疑似炸藥，毒品，麻醉藥品檢測。

節能環保：

支持超薄物檢測，支持有

行李放上機器才啟動運行無物體時靜止功能。

多種圖像處理功能：

低穿，高穿，灰度顯示，發色顯示，增亮，減暗，局部增強，超級增強，有機，無機

，滾動放大

等。

聯網功能：

支持管局網，安防網（可選），遠程管理（可選）

。

多語言環境：

支持英，日，俄，土耳其，法語，阿拉伯語，其他（定制）

。

人包關聯（可選）：

支

行李靠近設備觸發智能場景錄像，錄制文件和包裹關聯存儲。

高速安檢（可選）：

最高檢測速度

2

.5

米

/

秒。

A

I

智能識別（可選）：

支持

8

5

種違禁品類別甄別。

基本參數

通道尺寸 500（寬）×300（高）mm

傳送帶速度 0.22m/s

傳送帶額定負荷 50kg（均勻分布）

分辨力 直徑0.102mm金屬線

空間分辨力 水平/垂直：直徑1.0mm

穿透分辨力 直徑0.160mm/34AWG

穿透力 38mm鋼板（可調）

單次泄露劑量 ＜0.1μGy /h

累計泄漏劑量＜2.67μGy

射線束方向 底照式

管電流 0.3～1.0mA（可調）

管電壓 130～150KV（可調）

射線束發散角 80°

冷卻/工作周期 密封式油冷/100%

圖像處理系統

彩色圖像顯示 根據物質材質，偽彩色顯示

邊緣增強 物體輪廓邊緣更加清晰

超級圖像增強 圖像邊緣細節更加清晰

高穿透顯示 提高圖像中亮區的對比度，使易穿透區更清晰

低穿透顯示 提高圖像中暗區的對比度，使難穿透區更清晰

放大鏡 局部放大功能，動態實時100級放大

增亮/減暗 增加圖像的亮度/減暗圖像的亮度

圖像回拉/前拉 顯示前10幅圖像，并對圖像可進行任何圖像處理

圖像復原 一鍵圖像顯示恢復到最初狀態

圖像儲存 高速電子硬盤，默認支持500萬幅圖像存儲，連續工作保存

使用環境

工作溫度/濕度 0℃～45℃/20％～95％（不冷凝）

儲存溫度/濕度 -20℃～60℃/20％～95％（不冷凝）

工作電壓 220VAC（±10％）50±3HZ

功率損耗 0.5KW（最大值）

噪聲級 ＜55dB

檢測對象 包裹、郵件、小型箱包、手提箱、拎包等小型物件

適用場所 院校、銀行、稅務、法院、檢查院、看守所、旅游景點、體育館、 商場、酒店、交通軌道等有需求的場所

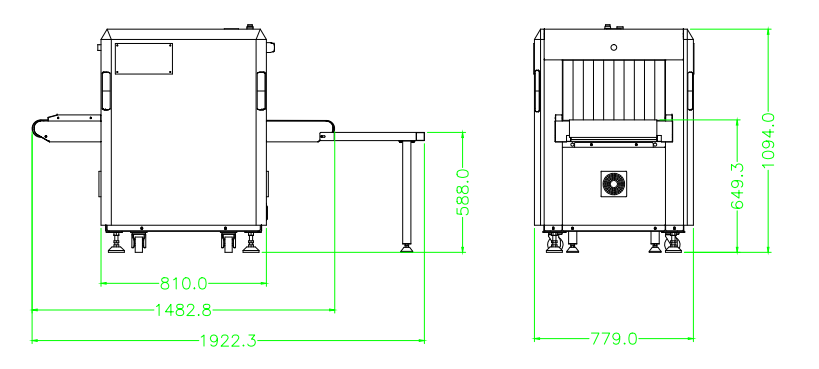

結構尺寸

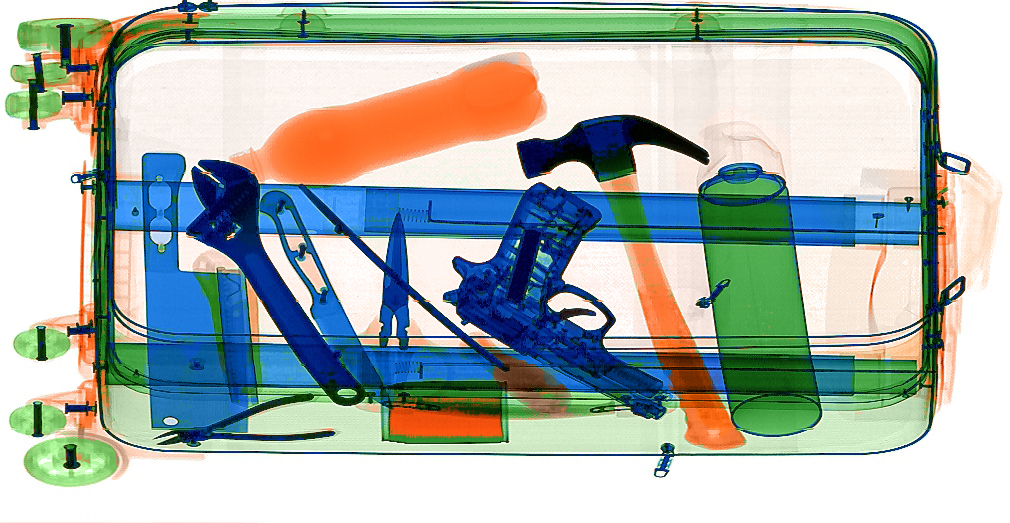

成像效果圖

X RAY BAGGAGE SCANNER TAD5030

Features:

High-end acquisition system design:

adopt imported detection system solution, imported detector, more stable performance,

more safe and reliable

Fully digital design:

digital generator, brushless motor, digital controller, digital collector, intelligent image processing system, AI intelligent recognition (optional)

Safety and reliability design:

"bow" shape light path design to reduce radiation, full lead protection approximately zero radiation leakage; Tree circuit design, independent electrostatic protection, prevent crosstalk, prolong device life; stuck baggage protection design, generator linkage design, belt deviation design, equipment diagnosis design,

360 degree

warning light design, remote management (optional), etc.

Waterproof function:

special treatment in the tunnel, a small amount of liquid scattered has no impact

Energy saving and environmental protection:

the machine can automatically sense the object, when the baggage is put on it will start running, and if no baggage it will stop running

Environmental protection design:

lead curtain with a protective film, the shell exposed lead part spray paint is not exposed, to prevent guests from coming into contact with lead, avoid lead pollution

AI intelligent identification (optional

) :

suspected contraband detection based on atomic order, and AI intelligent identification based on graphics

Description

HD acquisition system:

The product adopts 16~24bit wide digital acquisition card, imported detector, signal-to-noise ratio up to 20,000:1, good anti-interference ability, low failure rate.

Digital/analog x ray generator:

imported technology, tungsten and molybdenum anode, oil

cooled, 1.0mm spot, rise delay less than 20ms.

System self-detection function:

When the system is started or working normally, the virtual indicator on the interface indicates the working status of the system. If the device fails, it can prompt the system accurately and timely. Internal running processes can be logged (optional).

Save pictures in various formats:

Users can select the format to save pictures as required. BMP, JPG, PNG, JPEG and other image formats are provided.

Image file management system:

For the realization of the limited storage capacity to store more data and convenient user view designed to save the image data of the system by date save pictures, with functions of image compression, the author classifies detection capacity, capacity is insufficient, will automatically delete the earliest preserved old image data, to ensure that does not affect storage new pictures, at the same time, the system to provide the online image browsing, Can quickly browse any saved picture.Support image by user name, date query, delete, export and other functions.

Multi-user management:

3 Levels user management

Data recording:

automatically save user operation process, support process search, statistics

TIP function:

provides TIP insertion and TIP training

Supports contraband detection (optional):

supports penetrable alarm of high-density substances, and supports detection of suspected explosives, drugs, and narcotic drugs based on atomic sequence.

Energy saving and environmental protection:

support ultra-thin object detection, support the static function when there is no object until the luggage is put on the machine

A variety of image processing functions:

low penetration, high penetration, gray display, hair color display, brightening, darkening, local enhancement, super enhancement, organic, inorganic, rolling magnification, etc.

Networking function:

support bureau network, security network (optional), remote management (optional)

Multil

language environment:

Support English, Japanese, Russian, Turkish, French, Arabic, others (customized).

Person-baggage association (Optional):

When a baggage is near the device, intelligent scene recording is triggered, and the recorded files are associated with the baggage and stored

High-speed security check (optional):

maximum detection speed is 2.5m/SEC.

AI intelligent identification (optional

) :

Support 85 categories of contraband identification.

Advertising (optional

) :

LED/LCD dynamic advertising.

Provide customized services: equipment appearance, software interface and system functions can be customized.

Basic

P

arameter:

Tunnel size: 500（W）× 300（H）mm

Conveyor speed 0.22m/s

Conveyor belt load rating 150kg（evenly distributed）

Resolution dia 0.102mm wire

Spatial resolution H/V：dia 1.0mm

Penetration 33-38mm steel plate(adjustable）

leakage dose ＜0.1μGy /h

leakage dose per inspection＜1.0μGy

Beam direction bottom beam

Tube current 0.3~1.0mA

Tube voltage 130-150KV（adjustable）

Beam angle 80°

Cooling/Working cycle sealed oil cooling /100%

Image processing system

Color image display according to the material, pseudo color display

Edge enhancement Object contour edges are sharper

Super image enhancement Image edge details are clearer

High penetration display Improve the contrast of bright area in the image, make the easily penetrable area clearer

Low penetration display Improve the contrast of the dark area in the image and make the hard to penetrate area clearer

magnifying lens Local amplification function, dynamic real-time 100 level amplification

Lighten/darken Increase image brightness/decrease image brightness

Image pull back/forward Display the first 10 images, and the image can be any image processing

Image restoration One click image display to restore the original

Image store High speed electronic hard disk, the default support 5,000,000image storage, continuous work to save

Operating environment

Operating temperature/humidity0℃～45℃/20％～95％（non-freezing）

Storage temperature/humidity -20℃～60℃/20％～95％（non-freezing）

Working voltage 220VAC（±10％）50±3HZ

Power consumption 0.5KW（Max）

Noise ＜55dB

Detection object Parcels, mail, small cases, suitcases, bags, etc

Applicable place Colleges, banks, tax bearau, courts, inspection courts, jail, scenic place, gymnasiums, shopping malls, hotels, transportation and other places in demand

Structure size

Image rendering
